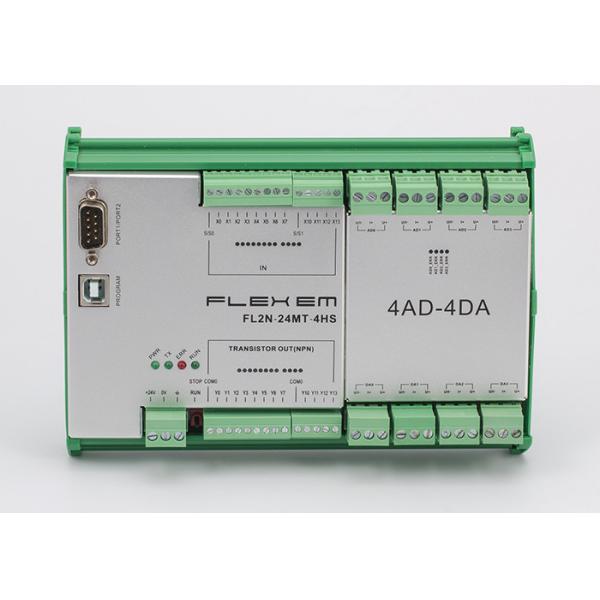

High Speed PLC Input Module Supporting Mitshubish FX2N / Modbus RTU Communication

Brand Name : FLEXEM

Model Number : FL2N-24MT-4AD-4DA

Certification : CE

Place of Origin : Shenzhen

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T

Supply Ability : 5000 pcs/week

Delivery Time : 1-7 business days after payment confirmed

Packaging Details : Carton

CPU : ARM 32-bit Cortex-M3 CPU

Digital Input : 12 Input *12,supporting source/drain type

Digital Output : 12 NPN transisitor power output*12

Analog Input : 4 pass AD,12-digit isolated ADC,voltage input:0V~+10V (input impedance>500kΩ） Power input:0mA~+20mA (input Impedance=100kΩ)

Bus Communication : 4 pass DA,12-digit isolated DAC,voltage Output:0V~+10V (Loading impedance>500kΩ） Power output:0mA~+20mA (Loading Impedance<500kΩ)

User Program Memory : 200k bytes(>10k Bytes)

Contact Now

FL2N-24MT-4AD-4DA-A Supporting Mitshubish FX2N and Modbus RTU communication PLC

Description:

* CPU: ARM CortexTM M3 CPU.

* Digital Input: Transistor input, supporting source drain type.

* Digital Output: NPN transistor output.

* High-Speed Input: 2-way AB input/4-way separate high-speed counting.

* High-Speed Output: 4-way high speed surge immunity output(100kHz x2, 50kHz x2)/(single-way output maximum 200kHz).

Specification:

Programming Language	Ladder diagram/standard C program (both can be used)
Communication Protocol	RS232 x1, RS485 x1, Supporting Mitshubish FX2N and Modbus RTU communication
Programming Port	USB connection
Components	Core components are imported with high quality
Bus Communication	4 pass DA, 12-digit isolated DAC, voltage output: 0V~+10v (Loading impedance>500kΩ) Power Output: 0mA~+20mA (Loading impedance<500Ω)

PORT1/PORT2
Pin1	Rx-(B) (PORT2 RS485)
Pin2	RxD (PORT1 RS232)
Pin3	TxD (PORT1 RS232)
Pin4	NA
Pin5	GND
Pin6	Rx+(A) (PORT2 RS485)
Pin7	NA
Pin8	NA
Pin9	NA
